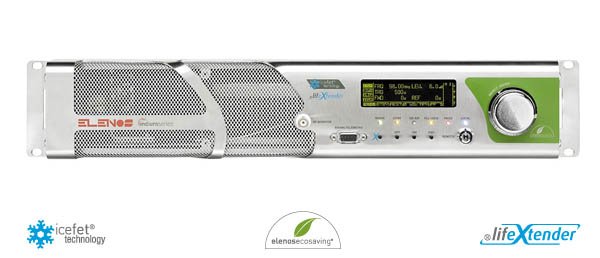

FM Transmitter ETG-2000.20 Indium
__________________________________
EFFICIENCY
AND ENERGY SAVINGS AT ALL POWER LEVELS
The Indium series of transmitters boast a certifiable efficiency
rate of 74%. That means savings in electrical, operating and cooling costs.
Thanks to the lower operating temperature, the life of the transmitter is
extended.
ULTRA
COMPACT SIZE: CONCENTRATED POWER
The Indium series of transmitters is two rack units high, and
less than 33 pounds: That’s a fraction of the weight of similar devices, giving
you savings in space and even shipping costs.
PLANAR
TECHNOLOGY
The Indium Series uses the planar technology for the entire RF
section (RF modules, combiners, splitters and low-pass filter). This minimizes
internal connections and soldering. That means increased stability, simplified
maintenance and an overall increase in reliability. The chances of failure are
severely reduced, and maintenance is simplified.
ECOSAVING
Thanks to our efficient design, the internal temperatures of the
transmitters remain outstandingly low. Energy savings, long product life and
even environmental protection are guaranteed. Want to see how much? Calculate
your savings with this
tool!
"EASY
SURFING": SIMPLE AND IMMEDIATE MONITORING
Controlling Indium is easy. It’s possible to configure all the
parameters of the transmitter by simply navigating through the software menus
using a front panel control knob. Easy Access buttons take you directly to the
main functions of the transmitter, so you can operate them quickly. Operating
parameters such as voltage, temperature, power, among others, are shown in an
O-LED display. Indium transmitters also include LEDs that provide a quick
snapshot of the status of the equipment. Complete monitoring capabilities of
all parameters on transmitter are easily accessible.
NO
CORROSION
To combat high humidity conditions, all of our circuit boards
are protected with a spray coating to prevent corrosion or shorting. An
aluminum chassis is used to further avoid corrosion. To combat humidity we pay
particular attention to the air flow inside the transmitter. These are some of
the things that make Elenos transmitters so reliable. We use multiple fans for
cooling, however all of the fans can stop running and the transmitter will stay
on the air – albeit at reduced power. To prove our point, watch this video.
(video link) By doing these things, we ensure that the transmitter can work in
the most extreme environmental conditions.
CONNECTIVITY
All Indium transmitters feature TC/TS for integration with
remote control systems. Plus, remote control can be carried out directly from
an iPhone or Android phone, using our app and e-Box.(link to e-Box) The
transmitter can store up to 6 different profiles of operation. All working
parameters are configurable. (Such as frequency, power, audio modes and levels)
Our Echo6 N+1 interface allows the transmitter to be used as a reserve in any
N+1 system, with any manufacturer’s transmitter. Indium Series Transmitters are
supplied with Ethernet port for connecting to a network with TCP/IP or SNMP.
The transmitter also has an integrated web server for control over the
internet. The transmitter can be equipped with an internal GSM modem for
management over SMS. This features a full range of quick and remote
diagnostics. HostLink standard protocol makes it
simple to handle large amounts of data to diagnose remotely.
Available Models:
ETG 2000.20 MPX/TS: The most
power in the most compact design. Only 2RU high of quality, reliability and
energy efficiency. keeps you on the air, with the highest efficiency. Save on
your electric bill with our energy saving transmitter. 2000 watts of pure reliable
power. Comes with built-in exciter. Stereo Generator not included.
ETG 2000.20 Stereo/
MPX/TS: The most power in the most compact design. Only 2RU high of
quality, reliability and energy efficiency. keeps you on the air, with the
highest efficiency. Save on your electric bill with our energy saving
transmitter. 2000 watts of pure reliable power. Comes with built-in exciter.
Composite MPX input plus stereo generator for discreet left /right audio input.
SPECIFICATIONS:
|
GENERAL
DATA |
|
|
Output
Nominal Power |
100W-2000W
adjustable |
|
Automatic
power RF control |
Stabilizes
the output power value on the set value |
|
Overall
output power RF stability |
+/-0,1
dB |
|
Operating
band |
87.5 -
108 MHz |
|
RS232/RS485 |
Yes |
|
Points
of measure |
RF Sample-MPX
Monitor |
|
Displayed
Parameters |
More
than 50 parameters displayed on a wide graphic LCD |
|
Adjustments |
From
the frontal panel trough OLED/from PC |
|
Microprocessor
controlled |
Yes |
|
Power
supply redundancy |
Yes |
|
Number
of MOSFETs in power amplifier stage |
8 |
|
RF
power stage technology |
ICEFET
& ECOSAVING |
|
MOSFET
type |
BLF278
Philips |
|
Dimensions:
Rack units |
2U |
|
Dimensions:
W - H - D |
19 .12 in –
3.1 in - 23 in |
|
Weight |
29.04
lbs. |
|
Nr. cooling
fans amplifiers |
3 |
|
INSTALLATION
REQUIREMENTS |
|
|
Power
supply |
110,
230 Two-Singlephase Version 50-60Hz VAC |
|
Power
consumption (typical) |
11.7 A
@ 230VAC ,2700W |
|
ENVIRONMENT |
|
|
Temperature
range (operating) |
+23 -
+113 °F |
|
Temperature
range (non operating) |
-4 - +122 °F |
|
Humidity
range (operating) |
95% a
104 °F |
|
Humidity
range (non operating) |
90% a 131
°F |
|
Altitude
range (operating) |
<
9842 Feet |
|
Altitude
range (non operating) |
<
16404 Feet |
